Quad

quad

Burner Control Unit suitable for the control of direct ignition burners up to 350 kW pursuant to EN746-2

Remote control and supervision of the burner can be implemented through traditional electrical wiring or through built-in communication line



ELECTRIC WIRING

eletric

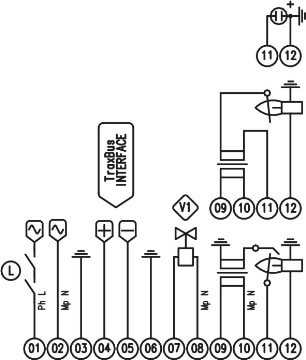

WIRING DIAGRAM

  • 01 - POWER SUPPLY PHASE
  • 02 - POWER SUPPLY NEUTRAL
  • 03 - GROUND
  • 04 - TRAXBUS POSITIVE
  • 05 - TRAXBUS NEGATIVE
  • 06 - GROUND
  • 07 - GAS VALVE
  • 08 - POWER SUPPLY NEUTRAL
  • 09 - IGNITION TRANSFORMER
  • 10 - POWER SUPPLY NEUTRAL
  • 11 - FLAME DETECTOR INPUT
  • 12 - GROUND

  • L - EXTERNAL LIMITS

FLAME DETECTION OPTIONS :

  • UV SCANNER
  • SINGLE SHARED ROD
  • DUAL ROD

LITERATURE UTILITIES

b1


TECHNICAL DATA

POWER SUPPLY


  • VOLTAGE: 110V or 230V
  • FREQUENCY: 50 / 60 Hz
  • LINE FUSE: 3,15 A
  • POWER CONSUMPTION: < 3 VA
  • POWER DISSIPATION: < 2 W

FLAME DETECTION


  • MINIMUM IONIZATION CURRENT: > 1 µA
  • CURRENT LIMITATION: 1 mA
  • SIGNAL DISPLAY: 0...100 µA
  • DETECTOR LINE LENGTH: < 30 m
  • SINGLE ROD LINE LENGTH: < 1 m
  • DETECTOR VOLTAGE: 250 Vac
  • DETECTOR INSULATION: > 50 MΩ

ENVIRONMENT


  • OPERATING TEMPERATURE: 0...60°C
  • STORAGE TEMPERATURE: -20...80°C
  • PROTECTION CLASS: IP65
  • RELATIVE HUMIDITY: 90% MAX
  • MOUNTING POSITION: ANY

OUTPUTS


  • RATED VOLTAGE: 250 Vac MAX
  • SWITCHING VOLTAGE: 277 Vac MAX
  • LOAD CURRENT: 3 A MAX
  • MINIMUM CURRENT: 1 mA @ 5V
  • SINGLE ROD LINE LENGTH: < 1 m
  • DETECTOR VOLTAGE: 250 Vac
  • BREAKING CAPACITY: 750 VA MAX

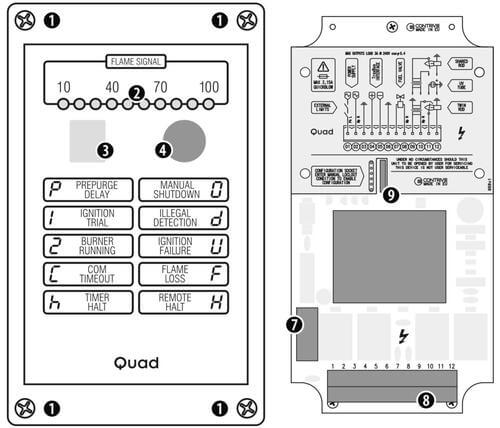

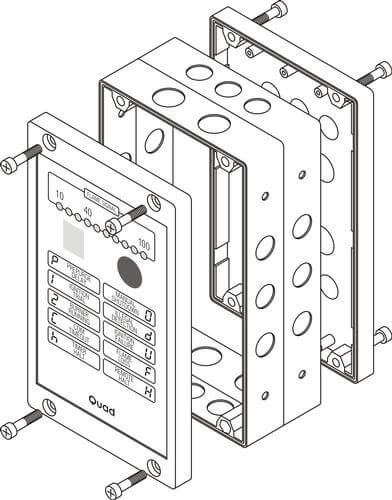

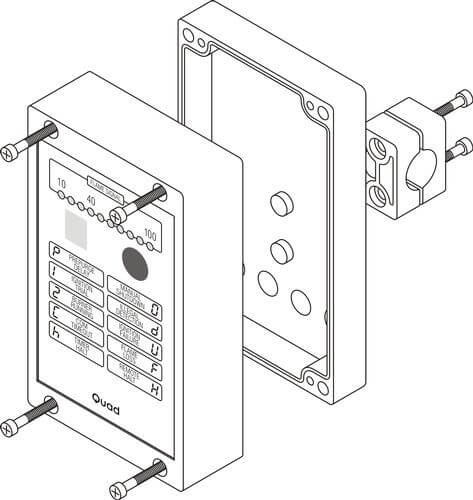

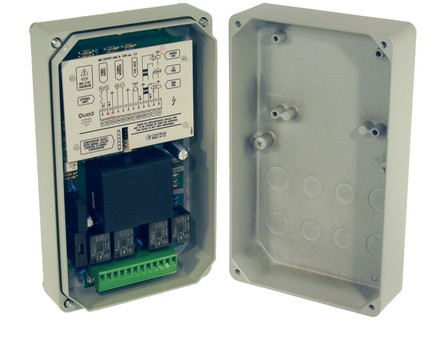

DEVICE LAYOUT

device

FRONT PANEL

  • 1 - FITTING SCREWS
  • 2 - FLAME SIGNAL BARGRAPH
  • 3 - STATUS DISPLAY
  • 4 - RESET / SHUTOFF BUTTON

INTERNAL

  • 7 - POWER SUPPLY FUSE
  • 8 - TERMINAL BOARD
  • 9 - EXPANSION / PROGRAMMING SOCKET

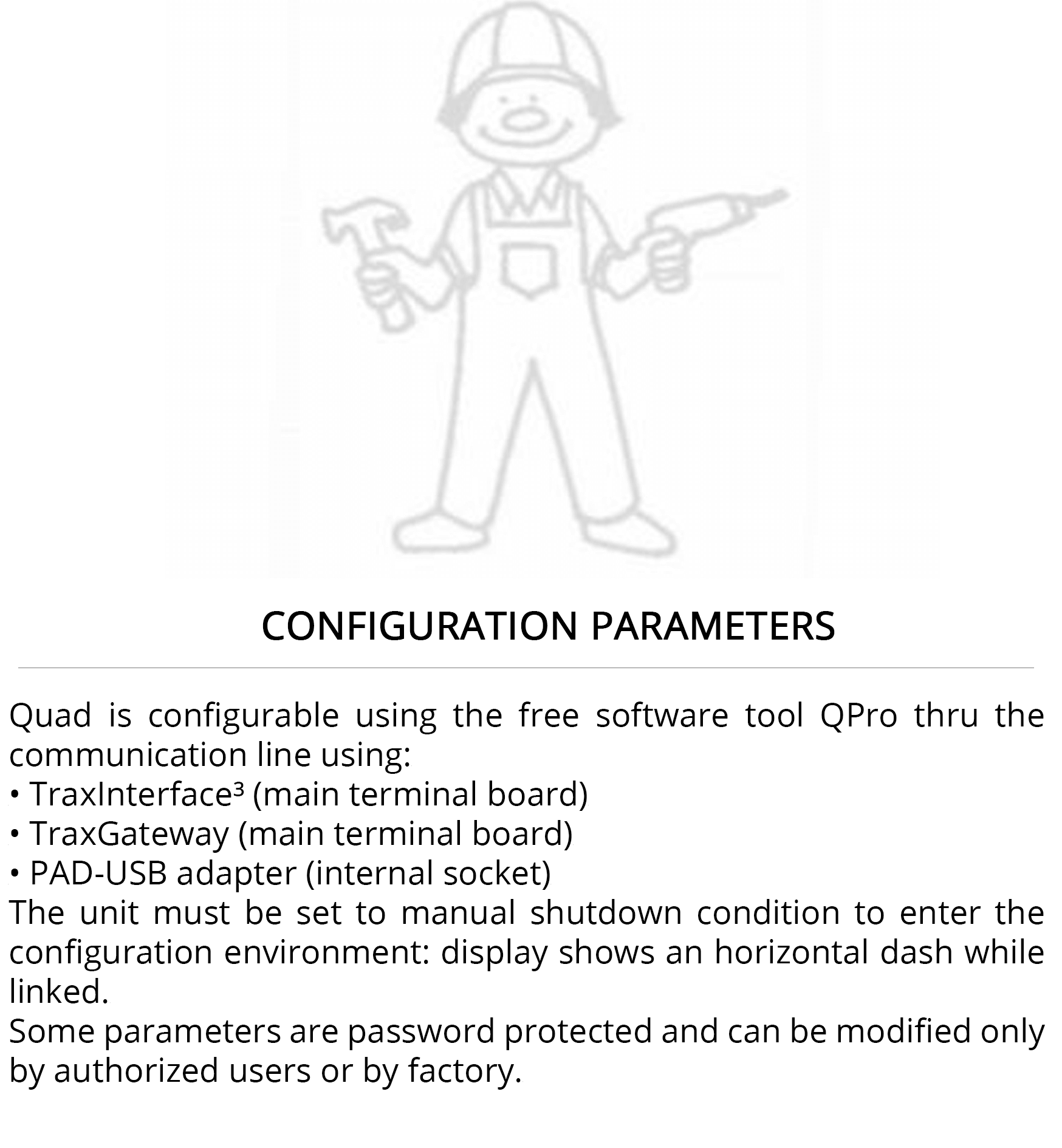

PARAMETER SETTINGS

HARDWARE

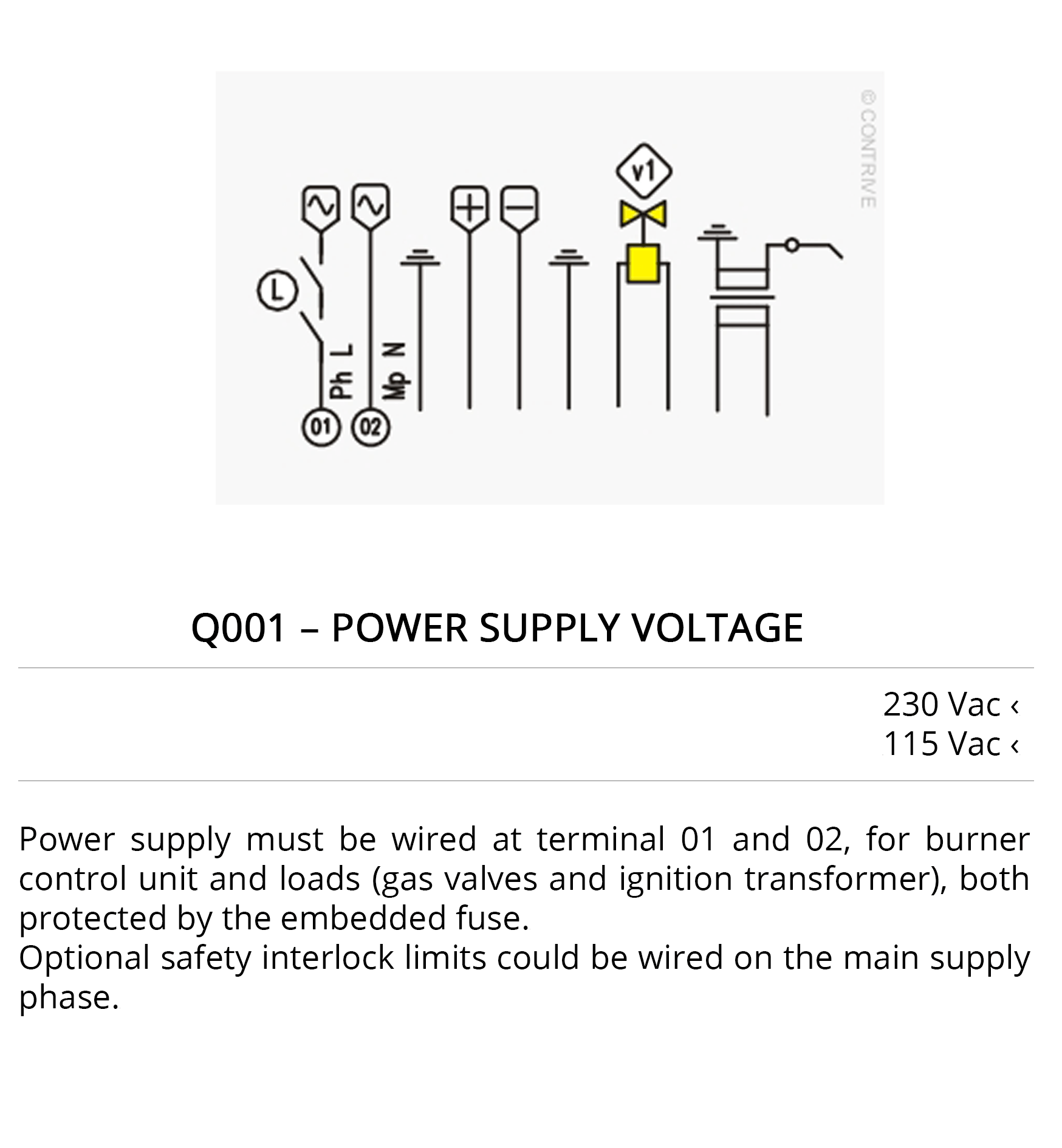

  • POWER SUPPLY VOLTAGE › Q001

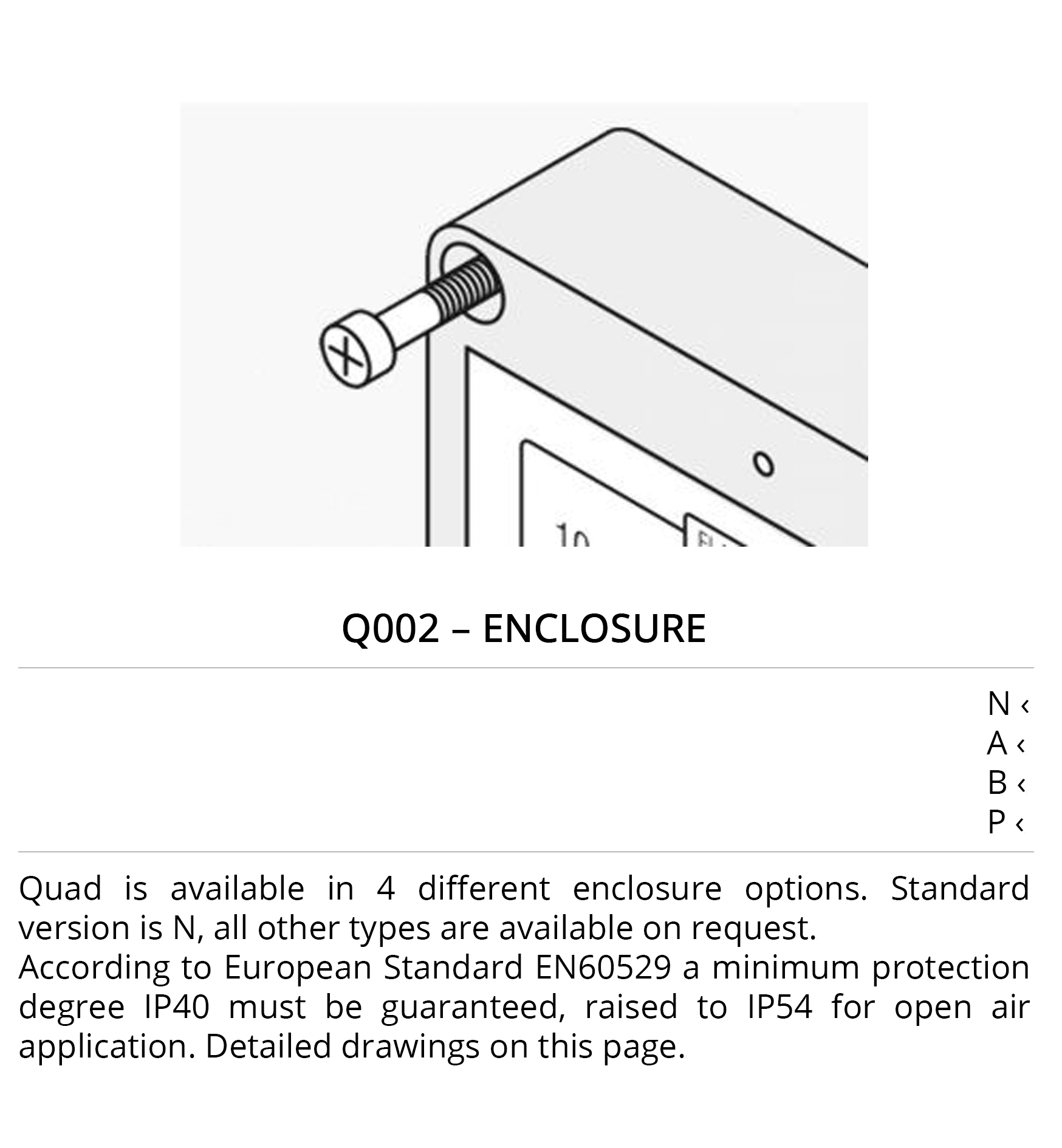

  • ENCLOSURE › Q002

POWER ON

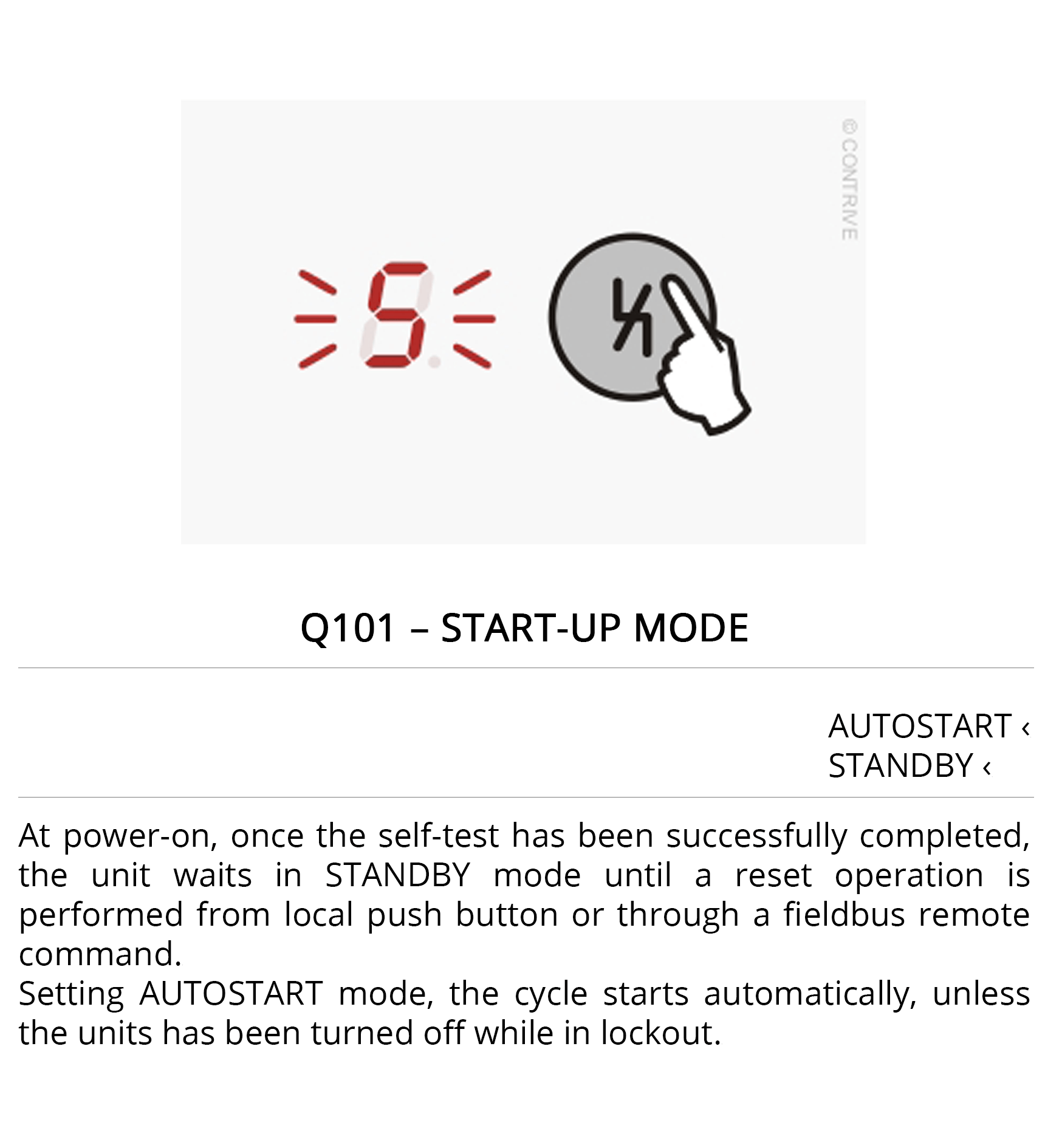

  • STARTUP MODE › Q101

PREPURGE

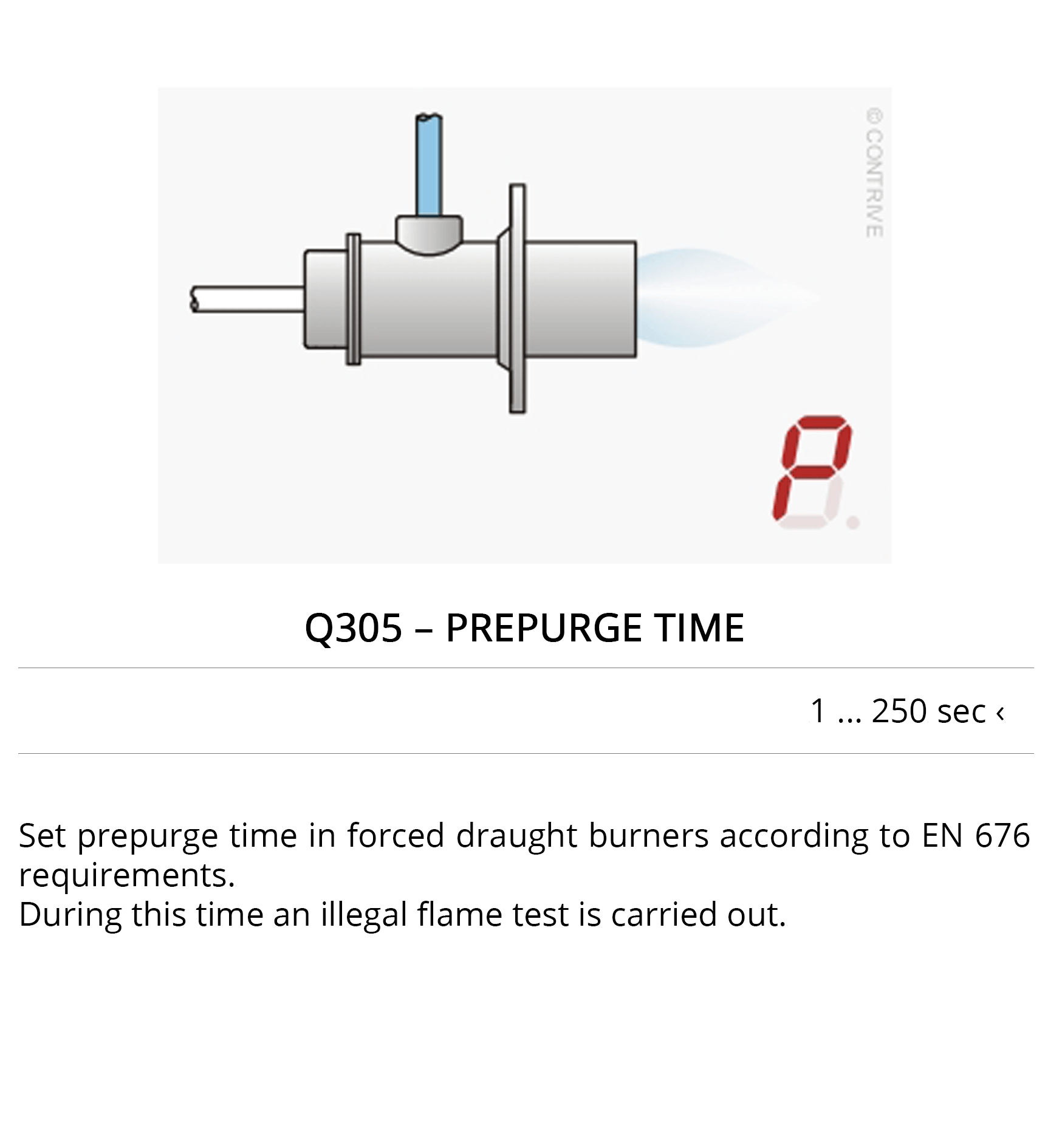

  • PREPURGE TIME › Q305

IGNITION

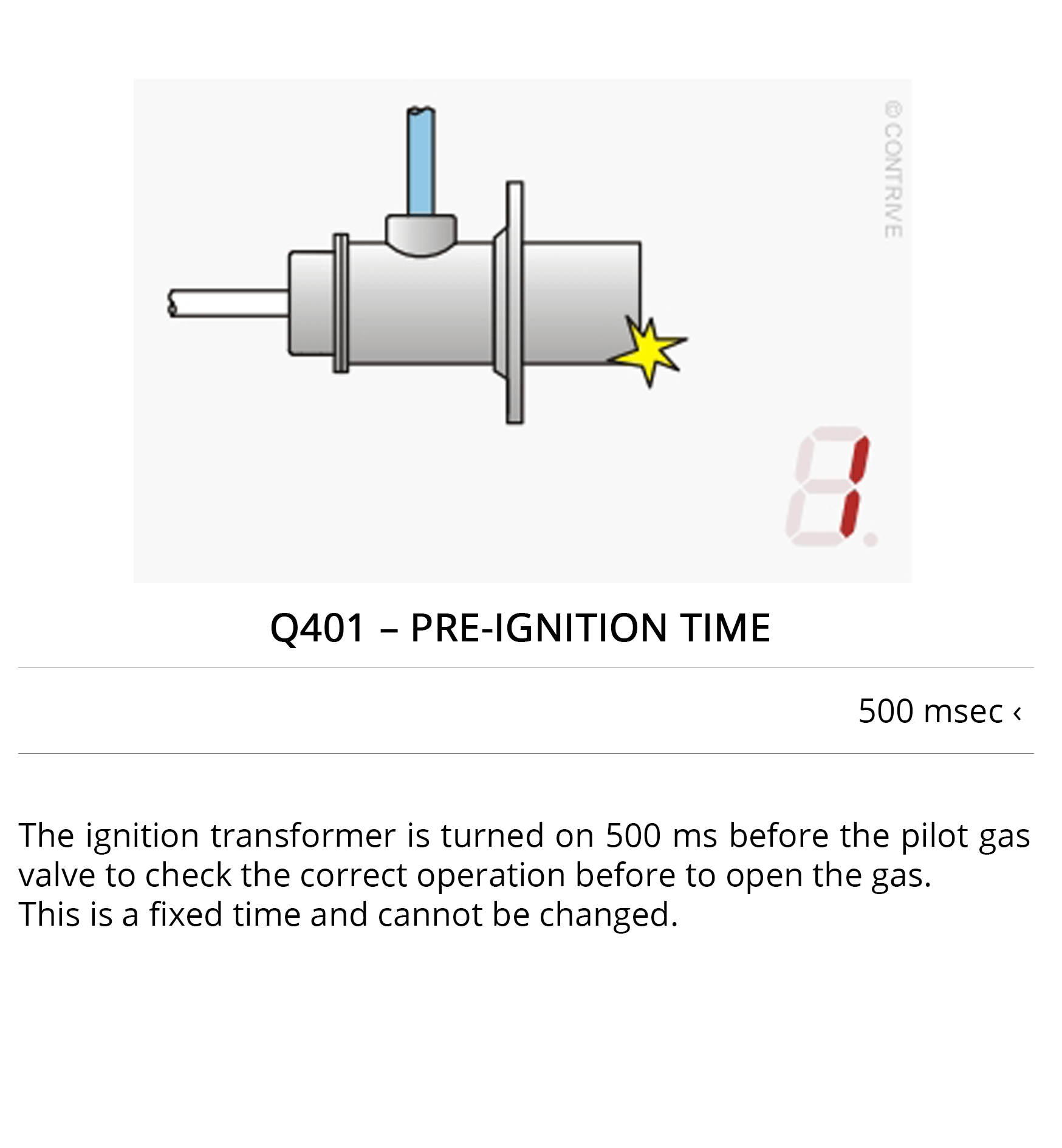

  • PRE-IGNITION TIME › Q401

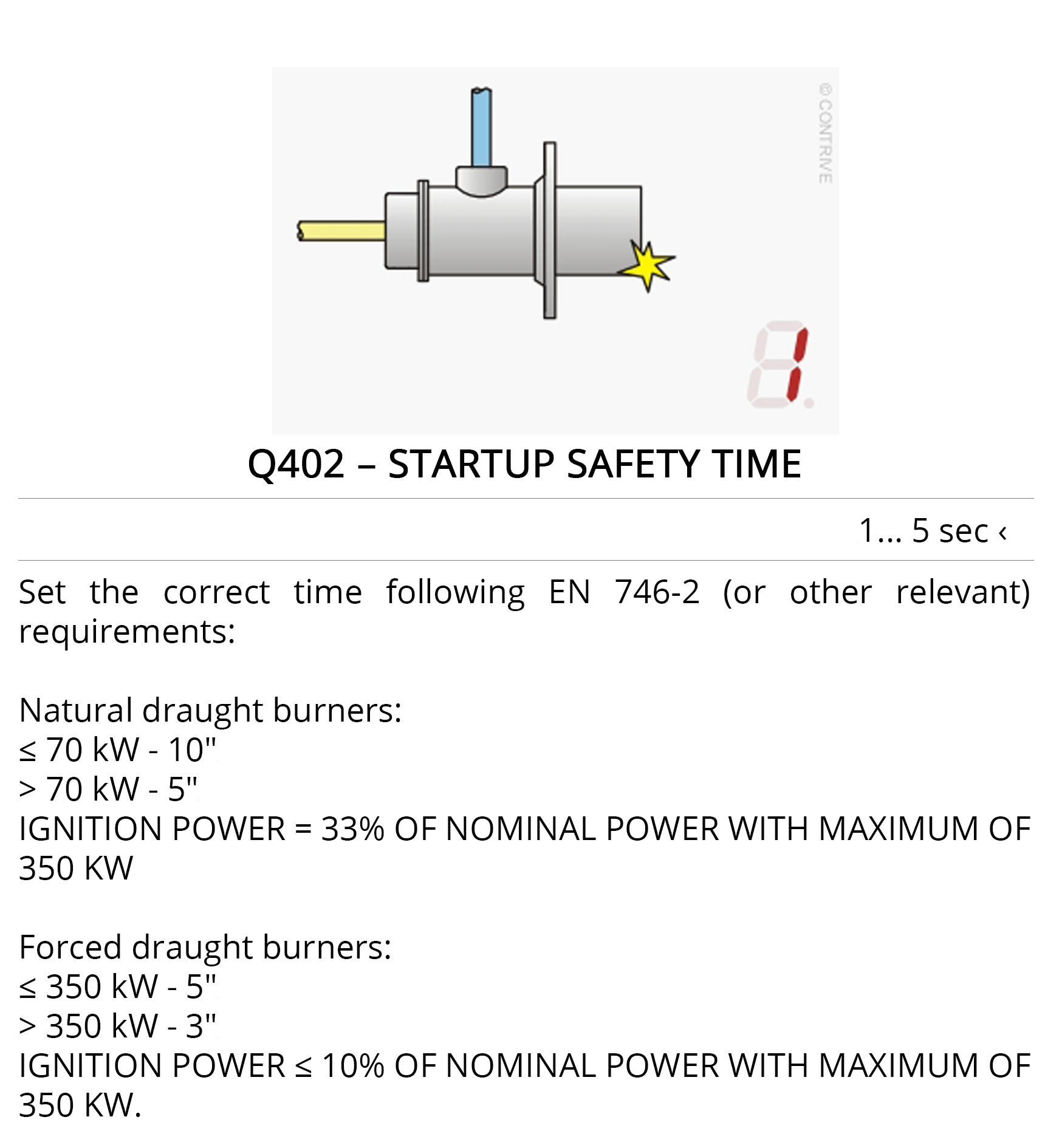

  • STARTUP SAFETY TIME › Q402

OPERATION

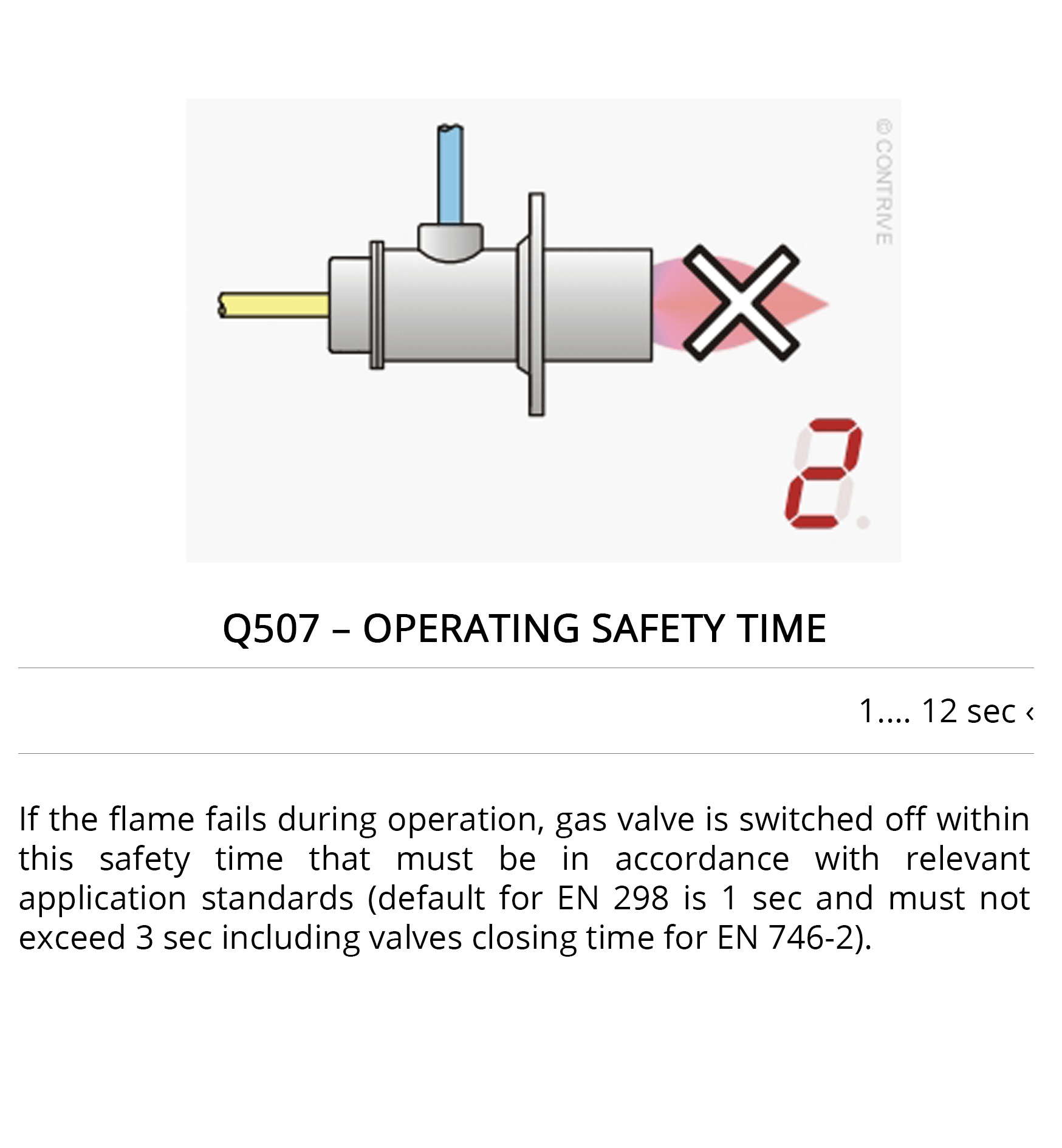

  • OPERATING SAFETY TIME › Q507

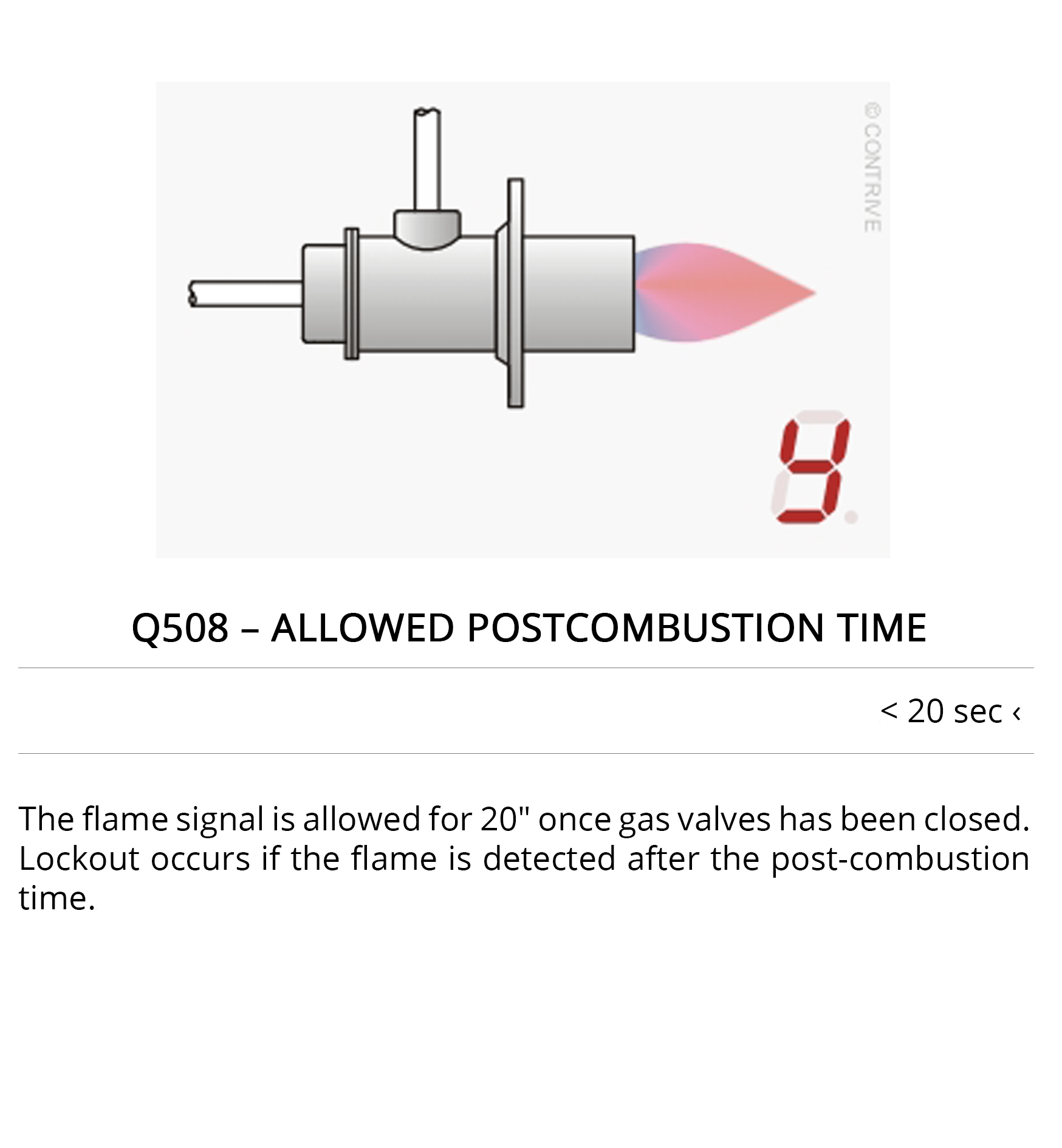

  • POSTCOMBUSTION TIME › Q508

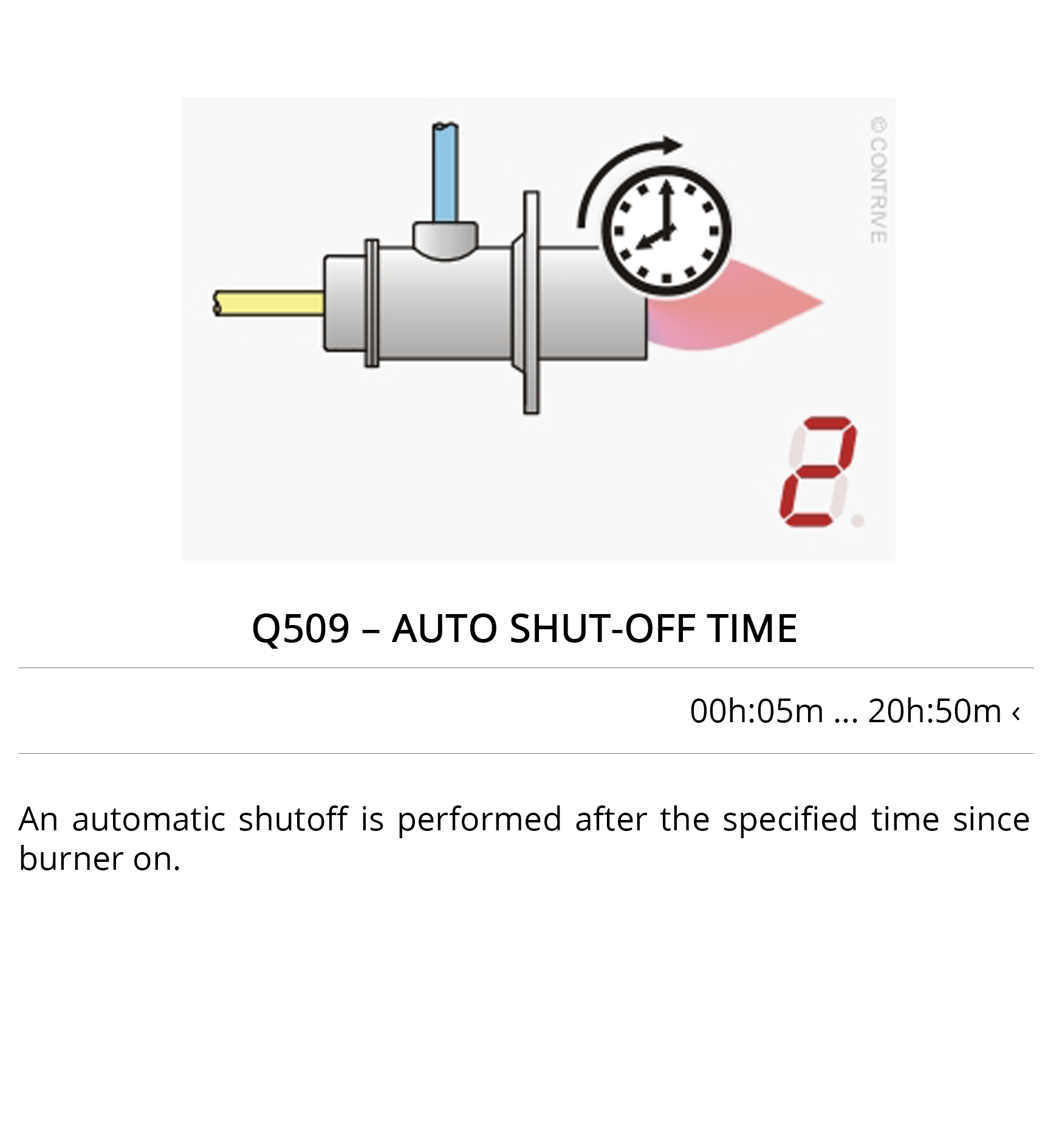

  • AUTO SHUT-OFF TIME › Q509

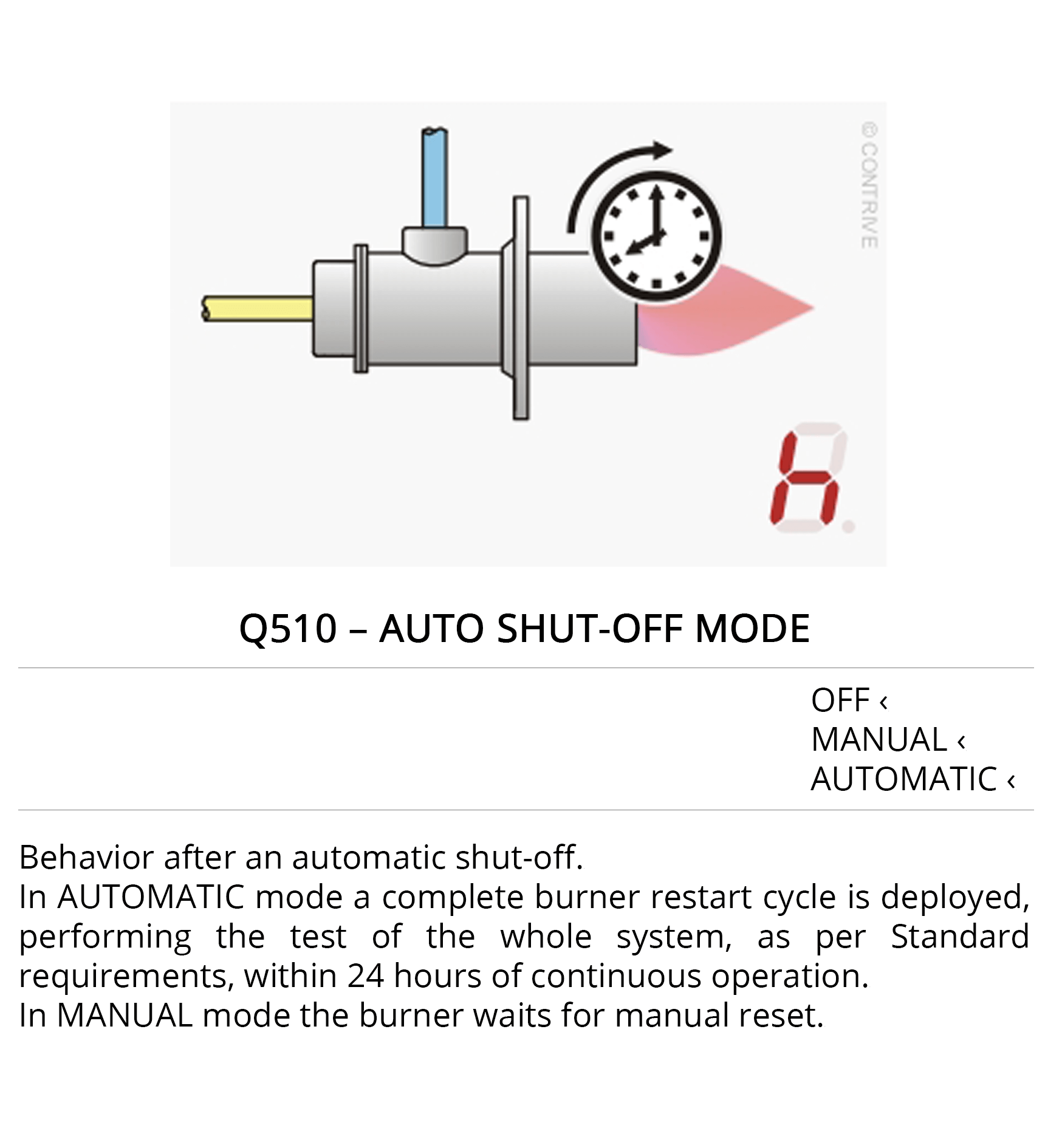

  • AUTO SHUT-OFF MODE › Q510

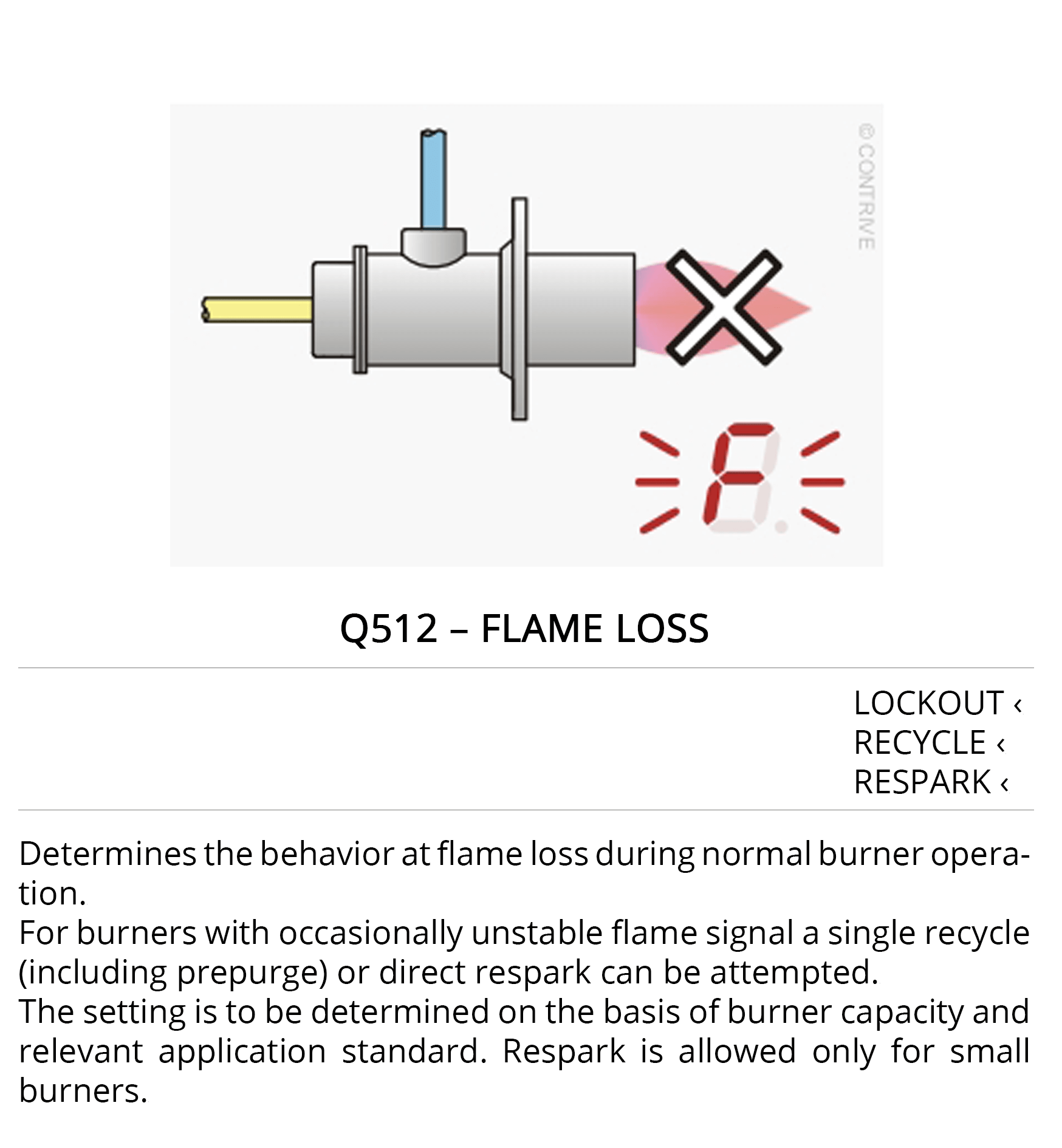

  • FLAME LOSS › Q512

POSTPURGE

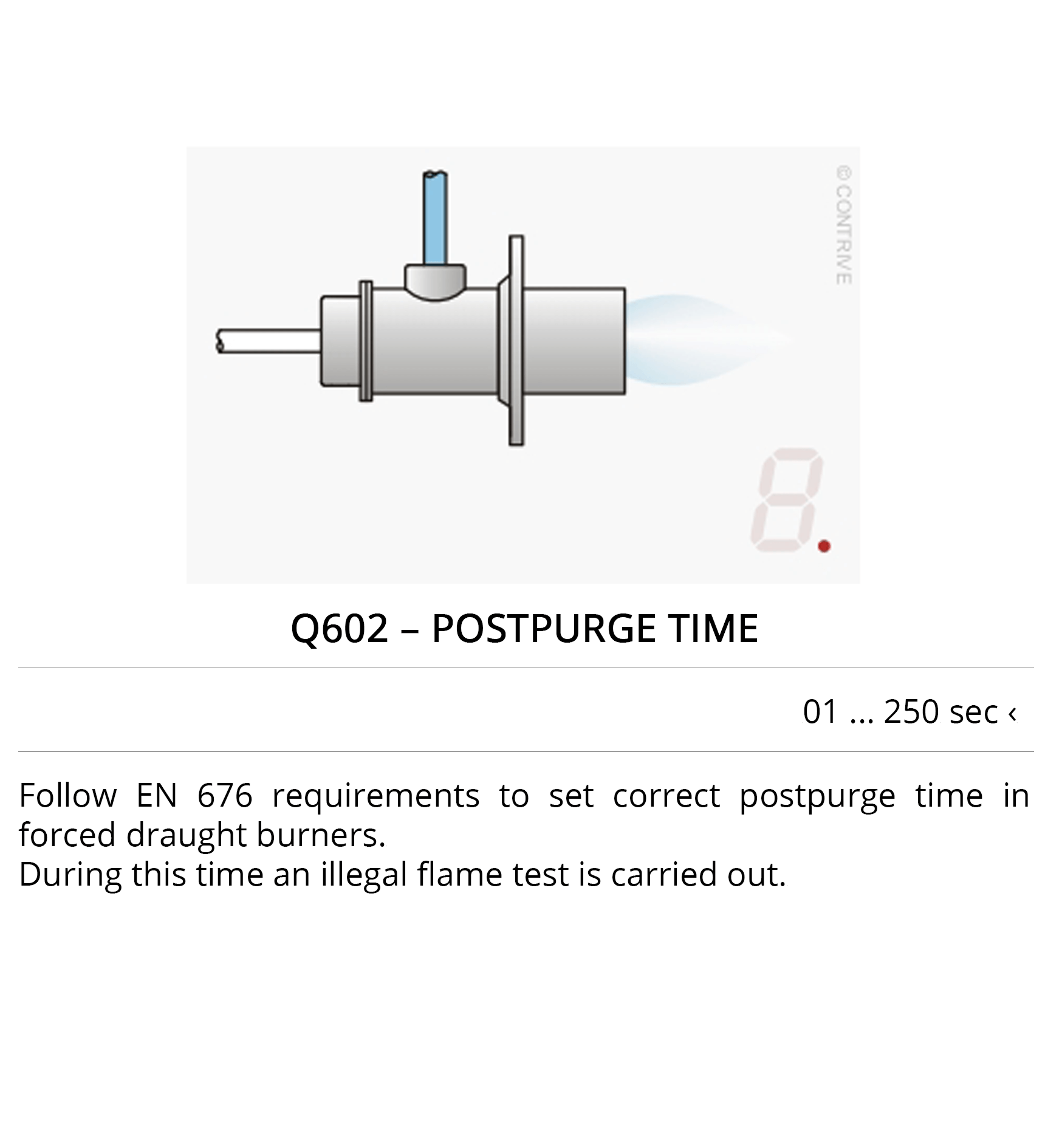

  • POSTPURGE TIME › Q602

COMMUNICATION

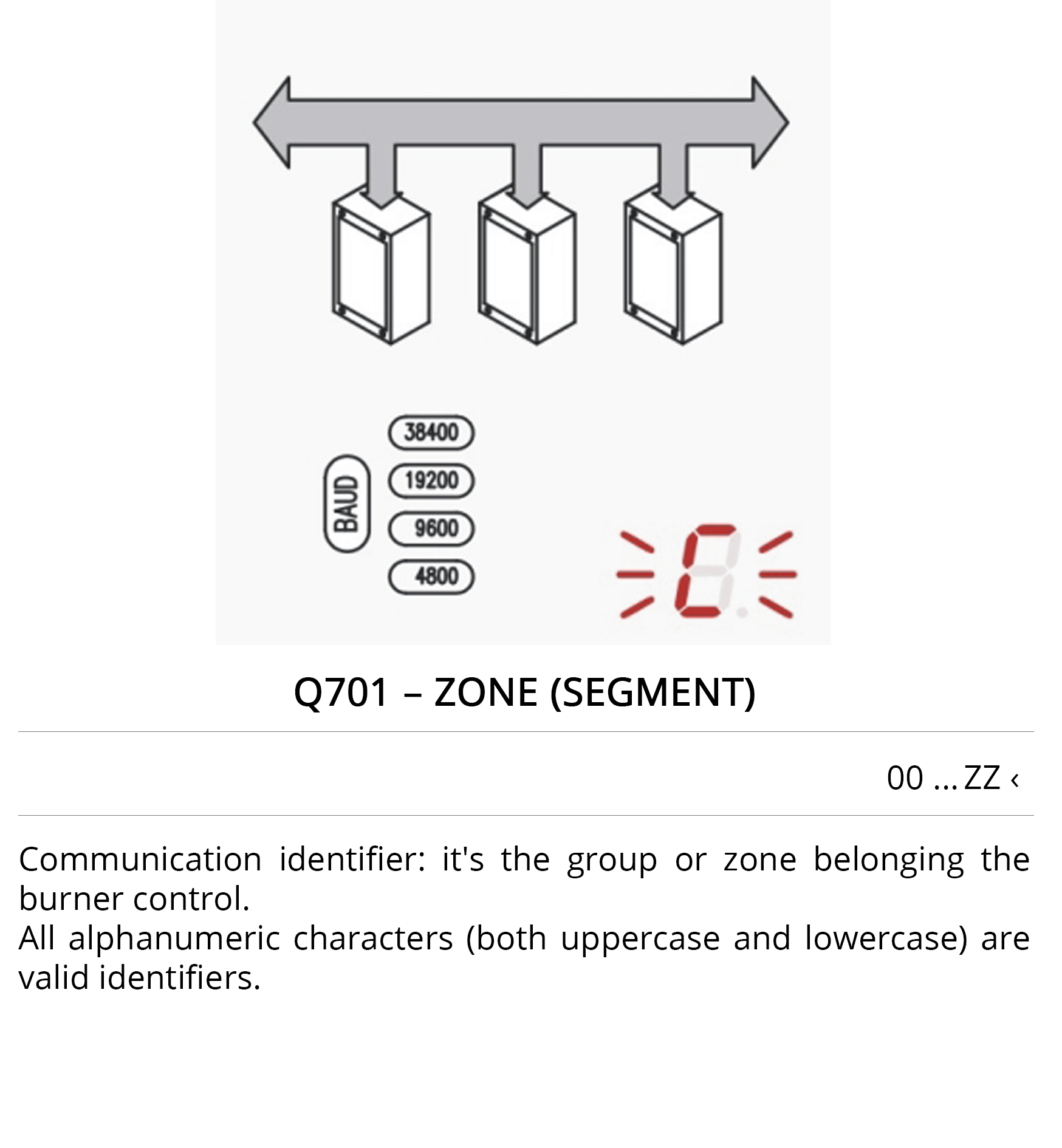

  • ADDRESS ZONE › Q701
  • ADDRESS UNIT › Q702

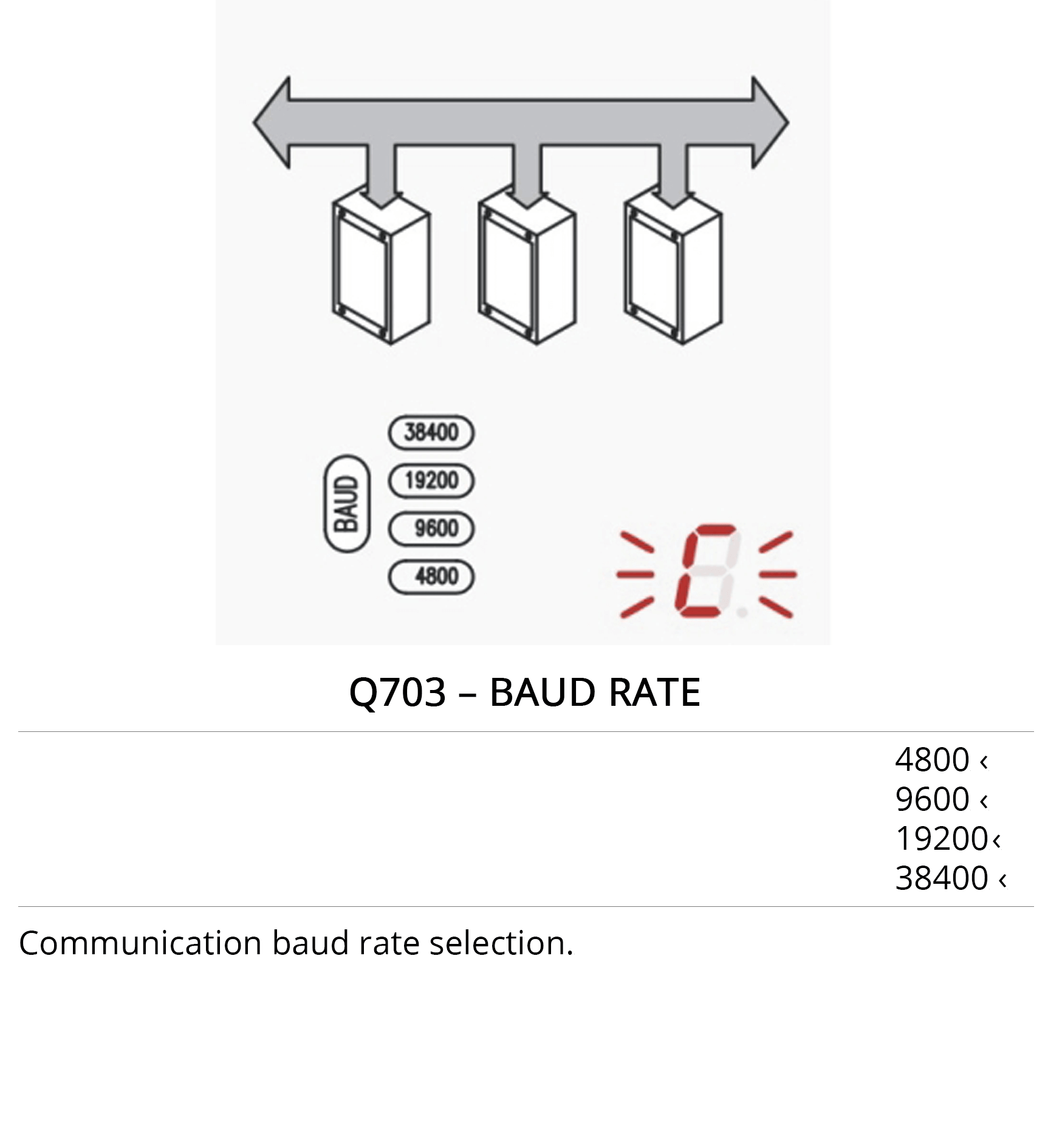

  • BAUD RATE › Q703

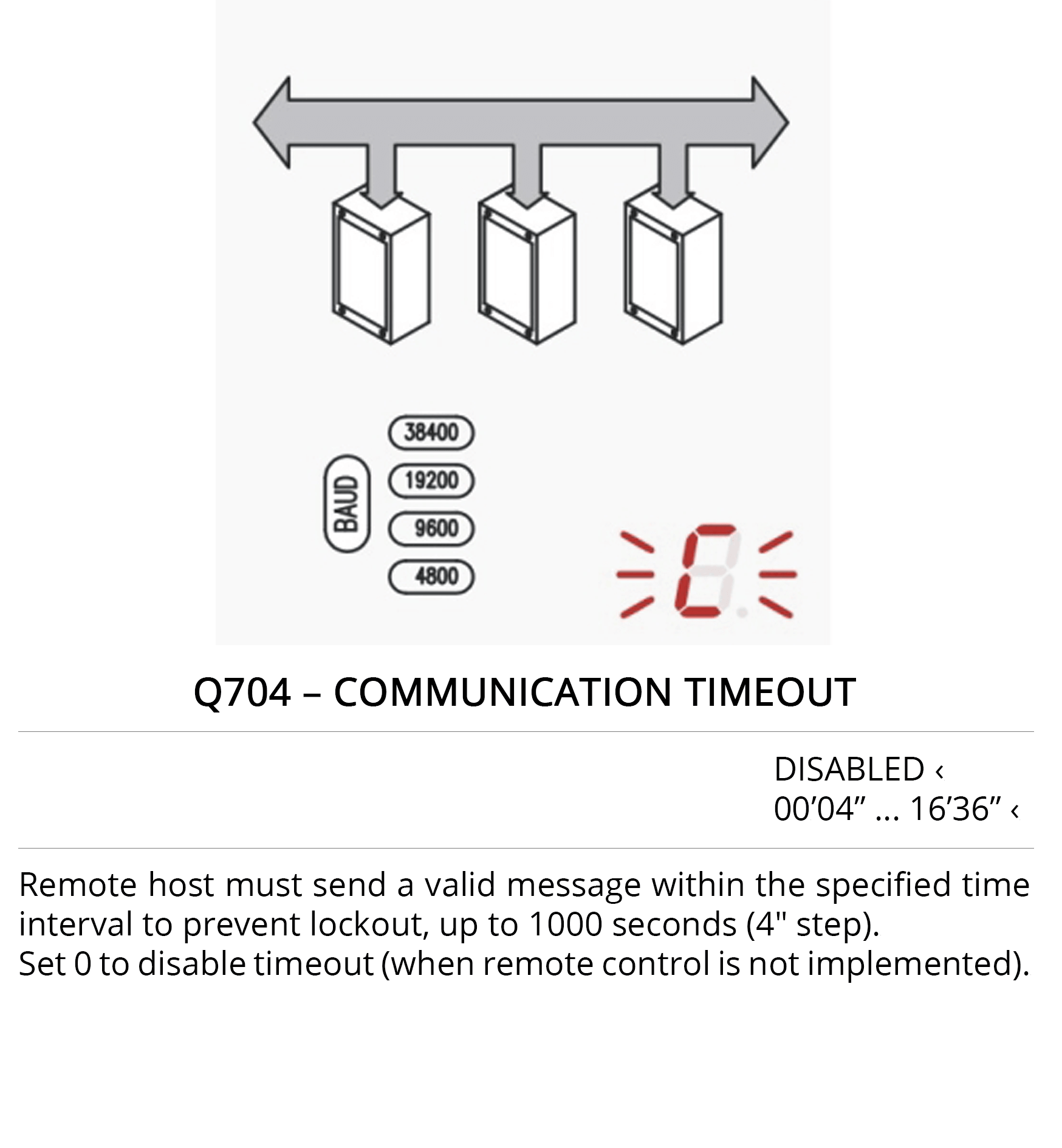

  • TIMEOUT › Q704

GENERAL SETTINGS

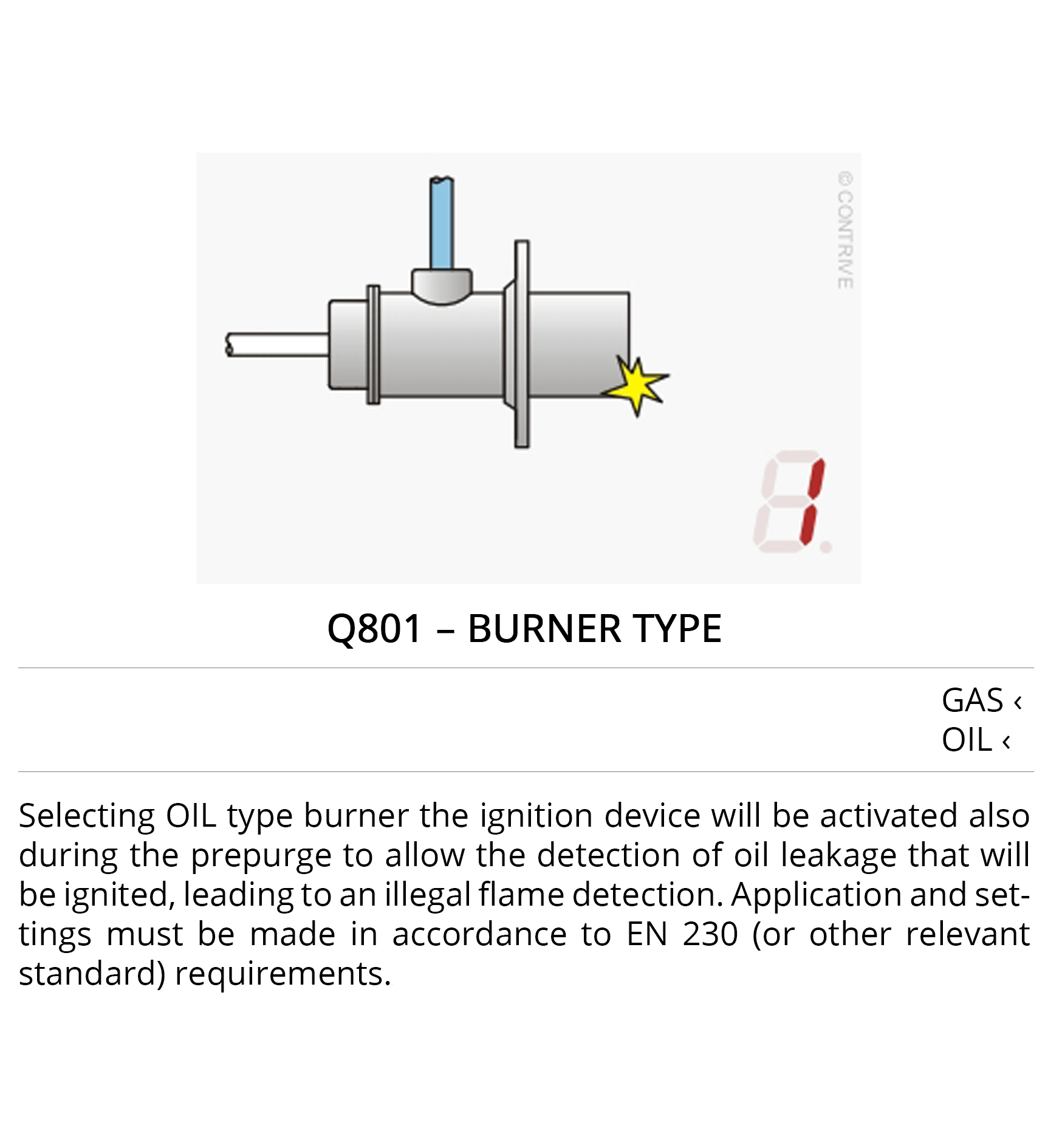

  • BURNER TYPE › Q801


ENCLOSURE DIMENSION

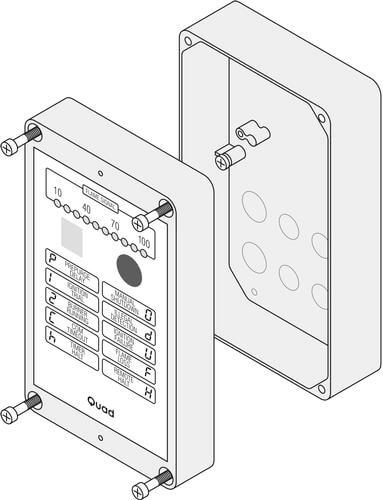

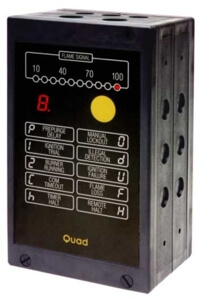

QUAD N

QUAD N

EPOXY COATED ALUMINIUM
200 x 120 x 71 mm • 1130g

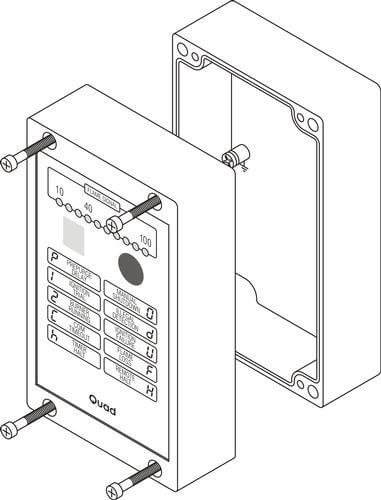

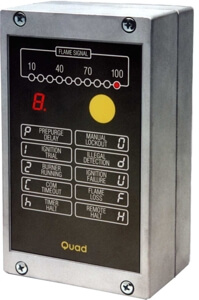

QUAD A

QUAD A

STANDARD ALUMINIUM
200 x 120 x 92 mm • 1800 g

QUAD B

QUAD B

LOW PROFILE ALUMINIUM
200 x 120 x 71 mm • 1400 g

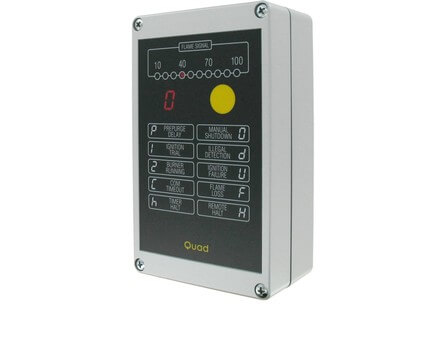

QUAD P

QUAD P

POLYCARBONATE UL-V0
200 x 120 x 96 mm • 1200 g
