UV4SH

complements

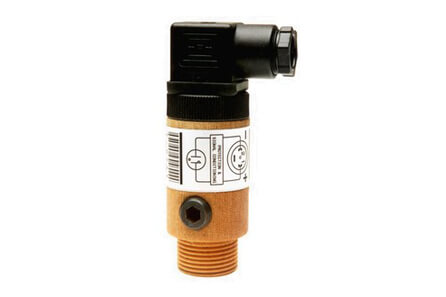

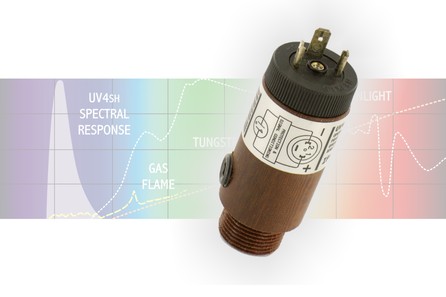

High performance UV detector for flame detection in gas, oil and mixed burners together with suitable Burner Control Unit or Flame Amplifier Device.



TECHNICAL DATE

SENSOR


  • SPECTRAL RESPONSE: 185...260 nm
  • OPERATING VOLTAGE: 200...280 Vac
  • DISCHARGE CURRENT: 1 mA
  • PEAK DISCHARGE CURRENT: 30 mA
  • RECOVERY TIME: 20 µs

ENVIRONMENT


  • OPERATING TEMPERATURE: -25...125°C
  • PEEPSIGHT TEMPERATURE: 125°C MAX
  • MAX VIBRATION ALLOWED: 0,5 g
  • RELATIVE HUMIDITY: 10...90%
  • PROTECTION CLASS: IP65

DIMENSIONAL DATA

  • INSULATING CASE: Ø35 x 80 mm
  • ELECTRIC CONNECTION: 3 pole SOCKET
  • WIRE GAUGE: 2 x 1,5 mm²
  • MECHANICAL CONNECTION: ¾ GAS
  • COOLING CONNECTION: ¼ GAS
  • MOUNTING POSITION: ANY
  • WEIGHT: 150 g MAX
  • OPERATING LIFE: >10.000 hours @ 50°C

UP TO 100.000 hours @ 50°C WHEN COUPLED WITH CONTRIVE DEVICES

LITERATURE UTILITIES

b1


WIRING

protection

WIRING DIAGRAM


  • 01 - POSITIVE TERMINAL
  • 01 - USUALLY GROUND
  • 02 - NEGATIVE TERMINAL
  • 02 - USUALLY AMPLIFIER INPUT

REVERSED POLARITY DOES NOT DAMAGE THE DETECTOR BUT PRODUCES NO USEFUL FLAME SIGNAL


CLASS II DEVICE
NO CONNECTION TO PROTECTION GROUND REQUIRED

dimension

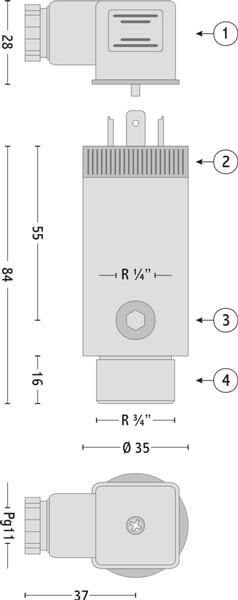

DIMENSION

  • 1- DIM 43650 - ISO 4400 PLUG
  • 2- DIM 43650 - ISO 4400 SOCKET
  • 3- OPTIONAL COOLING
  • 4- BURNER HEAD CONNECTION

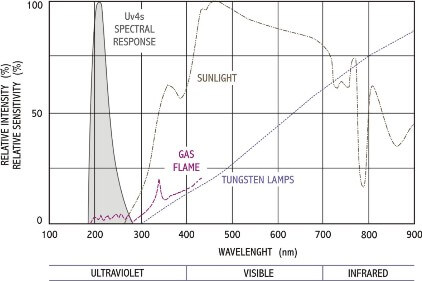

TYPICAL PERFORMANCE

graficos
graficos


VERTICAL DIRECTIVITY

Direção vertical

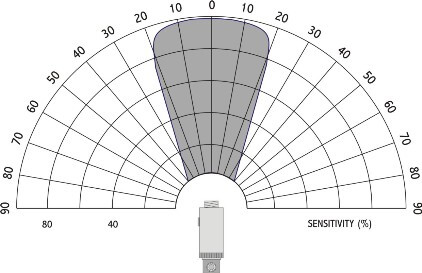

HORIZONTAL DIRECTIVITY

Direção horizontal
